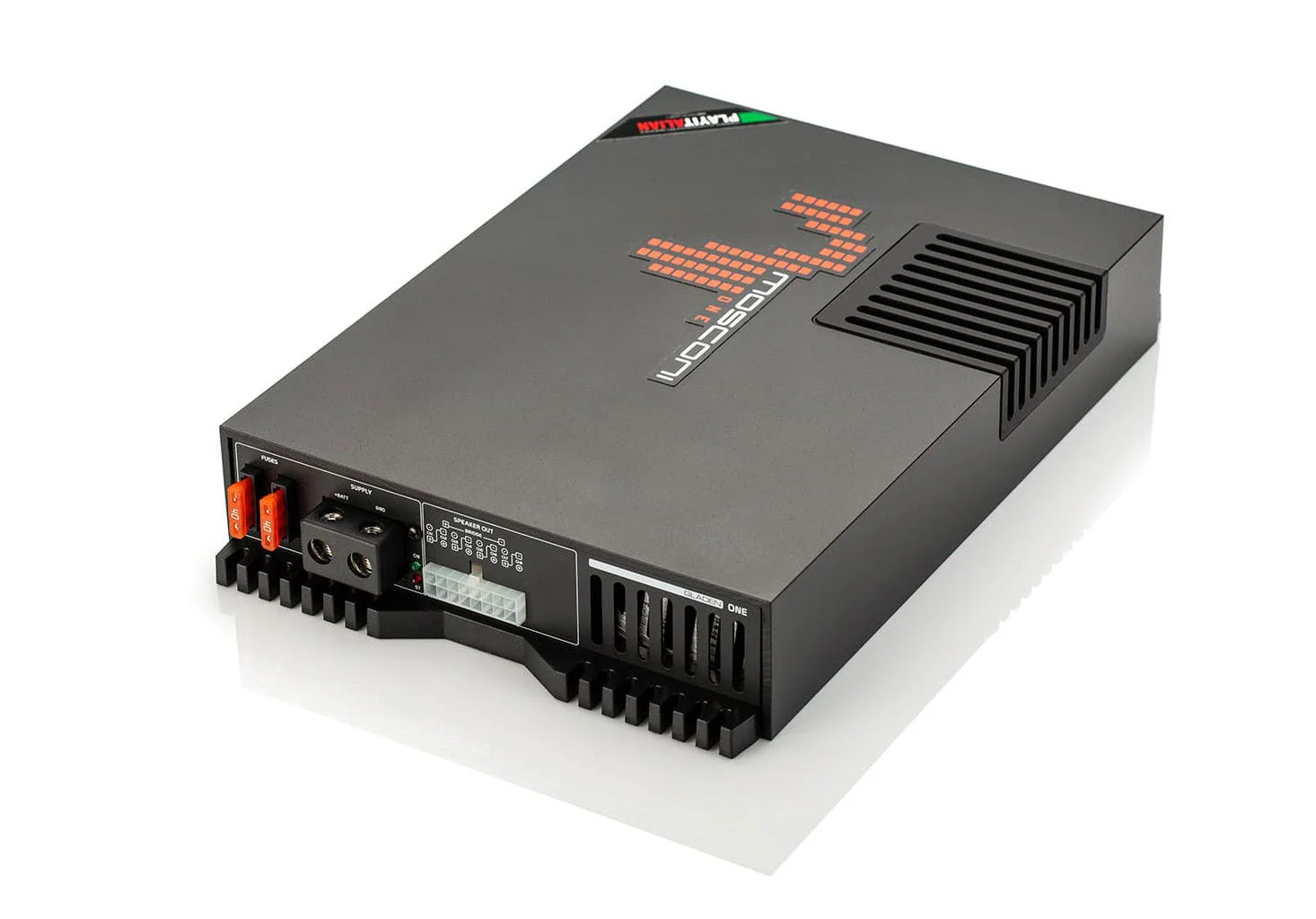

Mosconi ONE 90.8 DSP 8-Channel Amplifier with DSP

Mosconi ONE 90.8 DSP 8-Channel Amplifier with DSP

Features

8 Channel amplifier with DSP inside
Black finishing
Power Rating: 90 Watt per channel @ 4 Ohm < 1% THD+N
Sn Ratio: > xx dBA (ref: 1 Watt into 4 Ohm) ONE 90.8 DSP INSIDE
AB class amplifier with DSP “6to8″ inside
6 channels input and 8 power channels output
2 processed pre-out channels
Selectable Hi/Low level input
MOS-BTM module compatible
Controllable via RCD or RC-MINI VERY IMPORTANT NOTE – READ CAREFULLY: 4 Ohm ST or 8 Ohm BTL – CONTINUOUS SINEWAVE SIGNAL – pure resistive load or speaker load
2 Ohm ST or 4 Ohm BTL – MUSICAL SIGNAL – pure resistive load or speaker load

Specifications

Target Powers (@ 4 Ohm):
90 Watt x 8 @ 4 Ohm
85 Watt x 4 + 250 Watt x 2 @ 4 Ohm
240 Watt BTL mode @ 4 Ohm
Target Powers (@ 2 Ohm): 120 Watt per channel @ 2 Ohm
Input Sensitivity (Power rating ref): 0.8 V ÷ 17 V (LL/HL)

Special Features & Xover functions:

High Low Adapter
Autosense power-on (High Level only, SE or BTL mode)
Hand-free, Navigator, AUX inputs
Auto-Fading between inputs
Signal Mix capability
USB cable for PC connection
BT wireless module for PC connection (optional)
GUI (Windows XP,VISTA 32/64bit and 7 32/64bit)
Available hardware presets: 4
External memory for additional presets (optional)
30 bands parametric equalizer
Implemented filters type all standard filters available
HP frequency range for each channel Hz 10 ÷ 20000
LP frequency range for each channel Hz 10 ÷ 20000
HP and LP filter slope for each cell dB/Oct 6 to 24 (up to 48 if cascaded)
Band pass allowed yes
Variable “Q” 0.25 ÷ 40
Time delay ms 0 ÷ 15 (0,02 steps)
Phase inversion for each channel 0 / 180°
Gain level for each channel dB -115.5 ÷ 6
Remote Volume Control (optional)
Size & Weight: 300x200x50mm, 2.6Kg Download Specification Sheet
