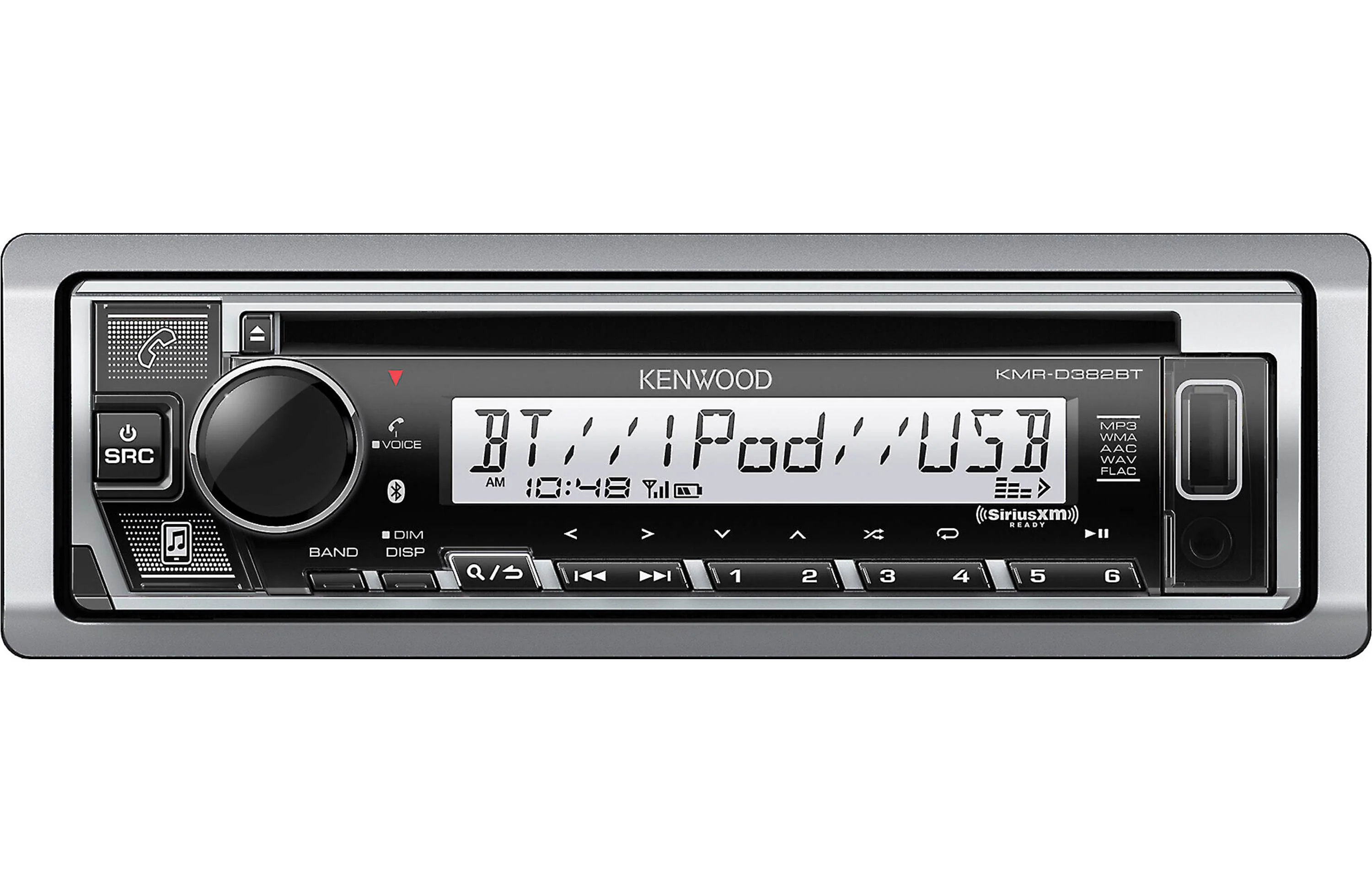

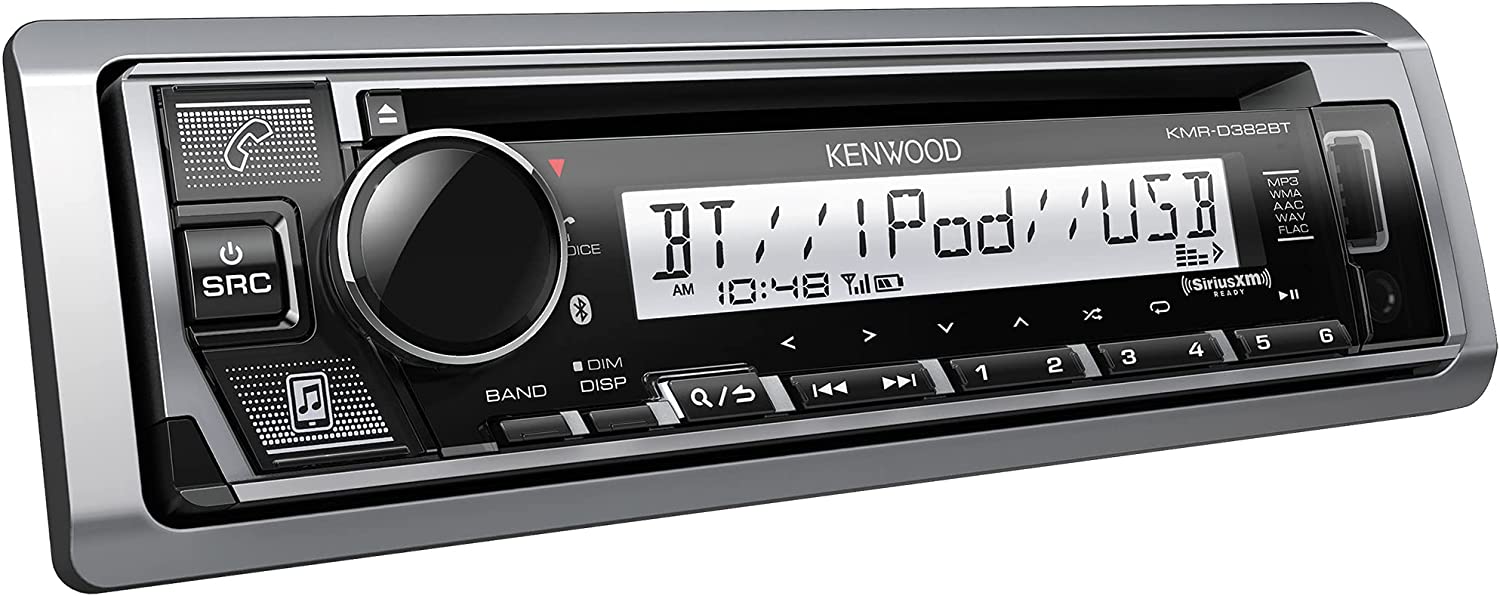

Kenwood KMR-D382BT Marine/Car CD/Bluetooth Receiver

Higlights

255 Segment 1.5 Line Text Display
Bluetooth Direct Access Button
Variable Color Illumination
13Band EQ & DTA
Conformal Coating
Optional Wired Remote Control Ready
Front USB & AUX IN
3 Preouts 4.0V

Smartphone Connectivity
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.

Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Control the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Designed for Ease of Use
Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.

And Vertical Alignment LCD display secures higher visibility during day-time drive.

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.

The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files.

Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Playable USB Files
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

FLAC - Playable up to: ～96kHz / ～24bit
WAV - Playable up to: ～44.1kHz / ～16bit
MP3 - Playable up to: ～48kHz / ～320kbps
WMA - Playable up to: ～48kHz / ～192kbps
AAC - Playable up to: ～48kHz / ～320kbps

13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

Digital Time Alignment
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

Drive Equalizer
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

System EXPANSION Ready
The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.

Additional Features
Learn about exciting product features and highlights.

Variable Color Display
Bright variable color LED's can be adjusted to match your environment.

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.

SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)

Spanish and French Text Display
On-screen display menu now available in Spanish and French.

Specifications

FM
Frequency Range(MHz): 87.9MHz to 107.9MHz
(Frequency step): (200kHz)
Usable Sensitivity: 8.2dBf
S/N:30dB: (0.71μV/75 Ω
Quieting Sensitivity: 17.2dBf
DIN S/N:46dB: (2.0μV/75 Ω)
Frequency Response(±3.0dB): 30Hz to 15kHz
S/N(dB): 64.0dB(MONO)
Stereo Separation: 40dB(1kHz)

MW (AM)
Frequency Range(kHz): 530kHz to 1700kHz
(Frequency step): (10kHz)
Usable Sensitivity: 29dBμ (28.2μV)

CD
Laser Diode: GaAlAs
Digital Filter(D/A): 8 Times OverSampling
Spindle Speed: 500 to 200rpm (CLV)
Wow & Flutter: Below Measurable Limit
Frequency Response: 20Hz to 20kHz(±1dB)
Total Harmonic Distortion: 0.02%(1kHz)
S/N Ratio (dB): 94dB(1kHz)
Dynamic Range: 91dB
Channel Separation: 86dB
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with WINDOWS MEDIA AUDIO
AAC Decode: AAC-LC ".aac" files
WAV Decode: -

Preout Level(mV)/Load -Unbalanced: 4000mV/10kΩ

Preout Impedance(Ω): =<600Ω

Speaker Impedance(Ω): 4 to 8Ω

USB I/F
USB: USB 1.1 / 2.0 High Speed
File System: FAT12 / 16 / 32
Maximum Supply current: DC5V(DC logo) 1.5A
Frequency Response: 20Hz to 20kHz(±1dB)
S/N Ratio (dB): 98dB(1kHz)
Dynamic Range: 94dB
Channel Separation: 91dB
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC ".aac",".m4a" files
WAV Decode: Linear-PCM
FLAC Decode: FLAC file (Up to 24bit/96kHz)

AUX Input
Frequency Response: 20Hz to 20kHz ±3dB
Input Maximum Voltage: 1000mV
Input Impedance: 30 kΩ

AMP
PWR(MAX): 50Wx4
Full Bandwidth Power
(at less than 1%THD): 22Wx4

TONE
Band1: 62.5Hz ±9dB
Band2: 100Hz ±9dB
Band3: 160Hz ±9dB
Band4: 250Hz ±9dB
Band5: 400Hz ±9dB
Band6: 630Hz ±9dB
Band7: 1kHz ±9dB
Band8: 1.6kHz ±9dB
Band9: 2.5kHz ±9dB
Band10: 4kHz ±9dB
Band11: 6.3kHz ±9dB
Band12: 10kHz ±9dB
Band13: 16kHz ±9dB

Bluetooth
Version: Bluetooth 4.2
Frequency Range: 2.402 to 2.480GHz
RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
Maximum Communication range: Line of sight approx.10m(32.8ft)
Profile
     HFP 1.7.1 (Hands Free Profile)
     SPP(Serial Port Profile)
     PBAP(Phonebook Access Profile)
     A2DP(Advanced Audio Distribution Profile)
     AVRCP 1.6.1 (Audio/Video Remote Control Profile)

General
Operating voltage: 12V DC car battery
Installation Size 7-3/16" W x 2-1/16" H x 6-1/8" D
Net Weight: 1.2(kg) 2.7(lbs)
(Trim plate and Mounting sleeve: Included)
